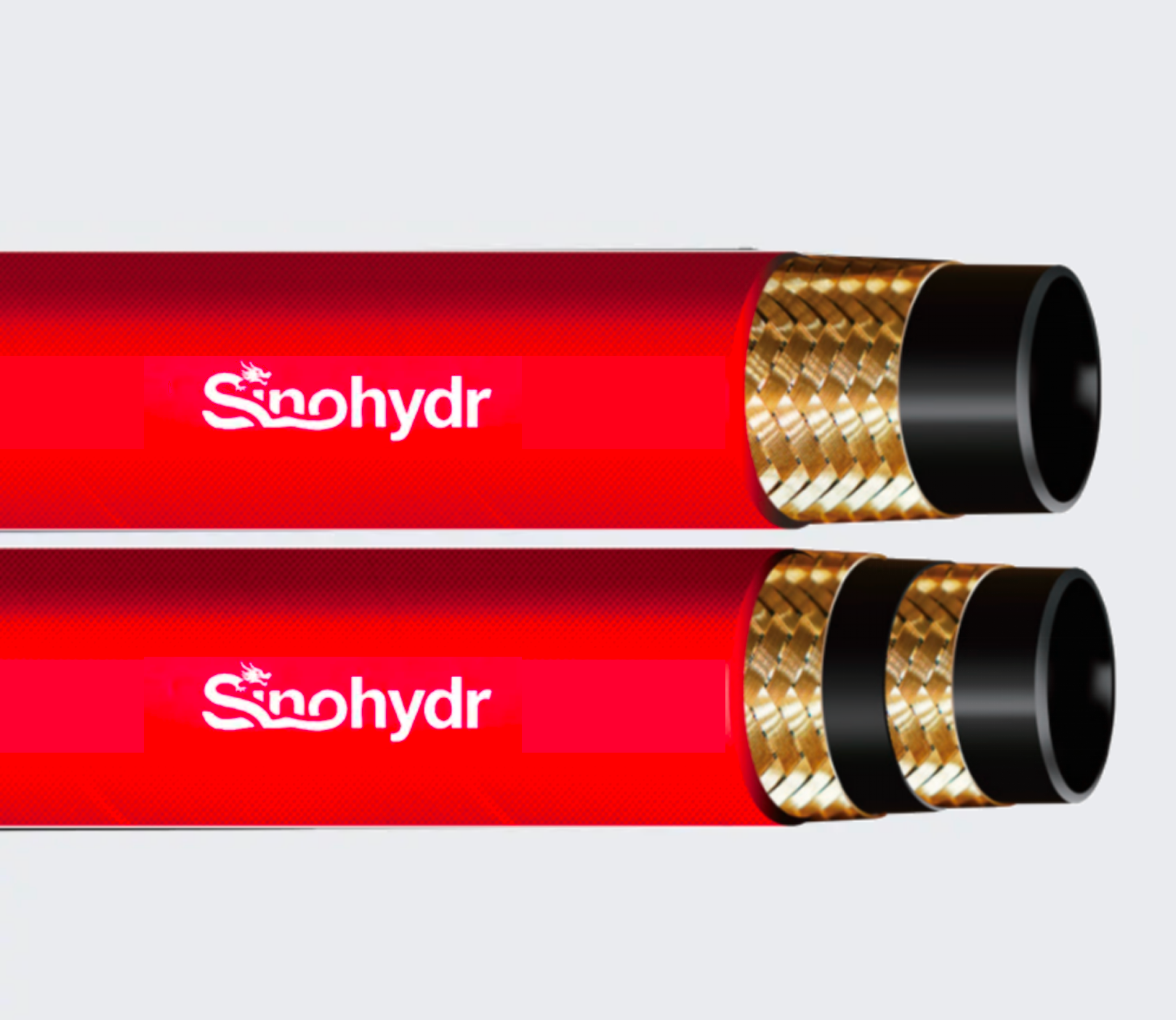

High Pressure Steam Hose

HG/T3036

CONSTRUCTION: This rubber layer inside and outside the hose is composed of synthetic rubber with excellent heat resistance.
APPLICATIONS: Suitable for conveying hydraulic fluids such as glycol ,mineral oil,lubrcation,emulsion,hydrocarbons etc.
WORKING TEMPERATTUER: From -30℃ up to +164℃.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Nominal Diameter		layer	Ss.P	Min.B.R	OD	W.T	Length
mm	GAP		Mpa	mm	min	Kg/m	m	GAP
13	±0.8	1	0.39	150.0	25	0.6	50	±70
16	±0.8	1	0.39	170.0	28	0.7	50	±70
19	±0.8	1	0.39	210.0	31	0.8	50	±70
22	±0.8	1	0.39	240.0	34	0.9	50	±70
25	±0.8	1	0.39	270.0	37	1.0	20	±70
32	±0.8	1	0.39	350.0	44	1.2	20	±70
38	±0.8	1	0.39	400.0	50	1.3	20	±70
