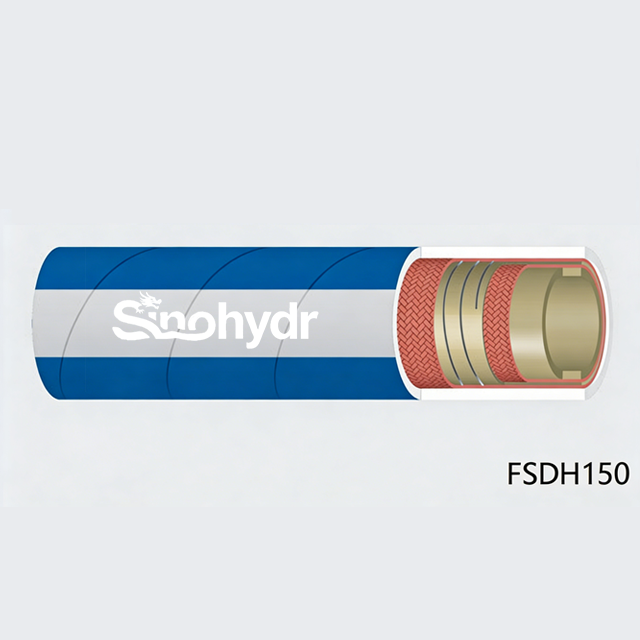

Our FSDH150 EPDM food hose is a high-quality food-grade hose specifically engineered for the safe transfer of edible liquids and semi-solids in food and beverage processing facilities. Constructed with a smooth EPDM inner tube and cover, reinforced by high tensile textile cord with helix steel wire, this hose delivers superior hygiene, durability, and flexibility. With a 3:1 safety factor and a wide operating temperature range of -40°C to 150°C, it is ideal for both cold and hot food processing applications. Available in sizes from 19mm to 152mm inner diameter, our food grade EPDM hose meets the strict hygiene requirements of the food and beverage industry, ensuring product safety and compliance.
The EPDM food grade hose features a non-toxic, odorless, and tasteless EPDM inner tube that is fully compatible with most food and beverage products. The smooth bore prevents bacterial growth and facilitates easy cleaning, making it suitable for CIP (Clean-in-Place) systems. The hose is free from harmful substances such as phthalates and heavy metals, ensuring compliance with international food safety standards and protecting your products from contamination.
Our heat resistant food hose operates efficiently from -40°C to 150°C, making it suitable for both cold storage and hot processing applications. The EPDM material provides excellent resistance to hot water, steam, alcohols, and mild acids commonly found in food processing. This versatility allows the hose to be used for multiple applications within a single facility, reducing inventory costs and simplifying procurement.
The reinforced EPDM food hose incorporates high tensile textile cord reinforcement with a helix steel wire, providing excellent kink resistance, crush resistance, and vacuum capability. This robust construction ensures the hose maintains its shape even under heavy loads or when bent sharply, preventing flow restrictions and extending service life. The blue or green outer cover provides easy identification and additional protection against abrasion and weathering.
I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
19 | 3/4" | 30 | 150 | 10 | 450 | 30 | 100 | 0.67 | 200 | 61 |
25 | 1" | 36 | 150 | 10 | 450 | 30 | 150 | 0.84 | 200 | 61 |
32 | 1-1/4" | 44 | 150 | 10 | 450 | 30 | 190 | 1.2 | 200 | 61 |
38 | 1-1/2" | 51 | 150 | 10 | 450 | 30 | 220 | 1.5 | 200 | 61 |
51 | 2" | 64 | 150 | 10 | 450 | 30 | 300 | 1.93 | 200 | 61 |
64 | 2-1/2" | 78 | 150 | 10 | 450 | 30 | 380 | 2.55 | 200 | 61 |
76 | 3" | 90 | 150 | 10 | 450 | 30 | 450 | 3.08 | 200 | 61 |
102 | 4" | 120 | 150 | 10 | 450 | 30 | 550 | 4.97 | 200 | 61 |
152 | 6" | 171 | 150 | 10 | 450 | 30 | 750 | 8.17 | 100 | 30.5 |
Our food grade rubber hose is widely used in the food and beverage industry for conveying a variety of edible products. Common applications include:
Hot and cold water transfer in food processing plants
Beer, wine, and beverage production and bottling
Dairy processing and milk transfer
Fruit juice and soft drink manufacturing
Confectionery and chocolate production
Bakery and pastry processing
Pharmaceutical and cosmetic manufacturing
Yes, the FSDH150 hose is specifically designed to handle hot water up to 150°C, making it ideal for hot water transfer and CIP cleaning systems in food processing facilities.
The FSDH150 EPDM food hose is suitable for conveying low-fat food products. For high-fat or oily food applications, we recommend our specialized oil-resistant food-grade hoses.
The hose is compatible with most standard CIP (Clean-in-Place) systems using hot water, steam, and mild alkaline or acidic cleaning solutions. Always follow proper cleaning procedures to ensure hygiene and extend hose life.
Our EPDM food hoses are manufactured to meet international food safety standards. We can provide relevant certification documents upon request to ensure compliance with your local regulatory requirements.
