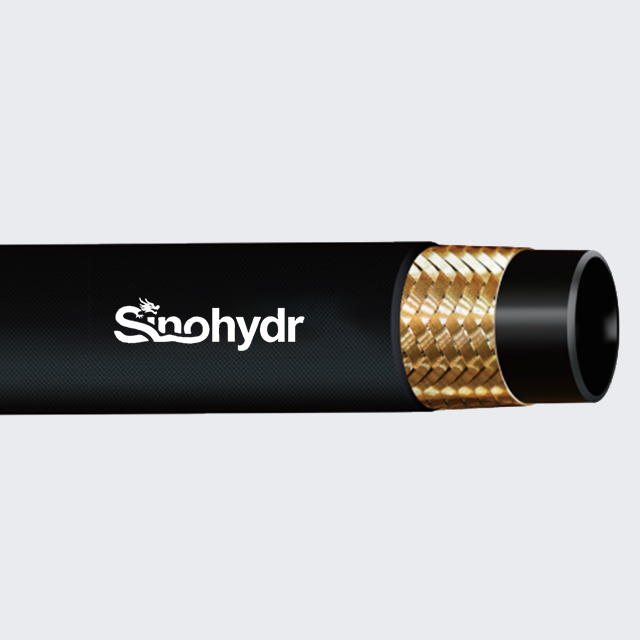

Our compact layer wire braided hydraulic hose is engineered to meet the rigorous demands of modern hydraulic systems, fully compliant with EN857-2SC, EN857-1SC and ISO11237 international standards. This high-performance hydraulic hose features a three-layer construction: an oil-resistant synthetic rubber inner tube, a single or double high-tensile steel wire braid reinforcement, and a durable oil and weather-resistant rubber cover. Designed for space-constrained installations, our compact hydraulic hose delivers exceptional pressure ratings while maintaining a smaller outer diameter compared to conventional hoses. Available in both 1SC (single wire braid) and 2SC (double wire braid) configurations, we offer a comprehensive range of sizes from 6.3mm (1/4") to 25mm (1") nominal diameter to suit diverse industrial applications.
The compact wire braided hydraulic hose features an optimized cross-sectional profile that reduces outer diameter by up to 15% compared to standard hydraulic hoses. This space-saving design allows for tighter bends and more flexible routing in confined equipment compartments, making it ideal for modern machinery where installation space is at a premium.

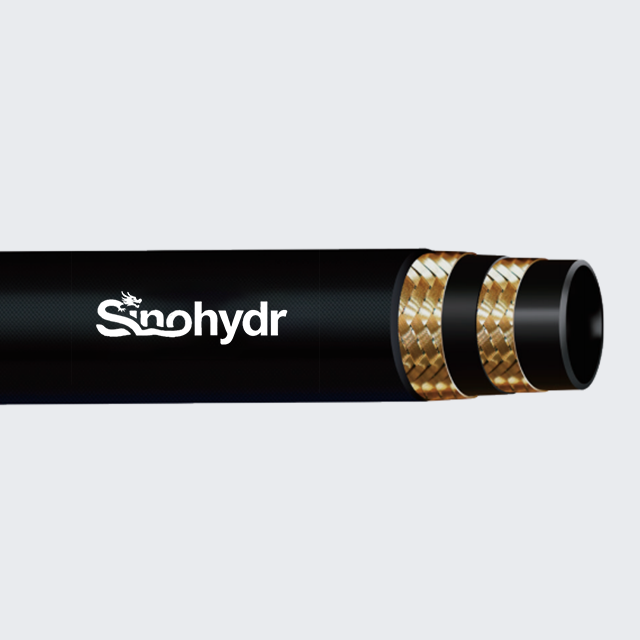

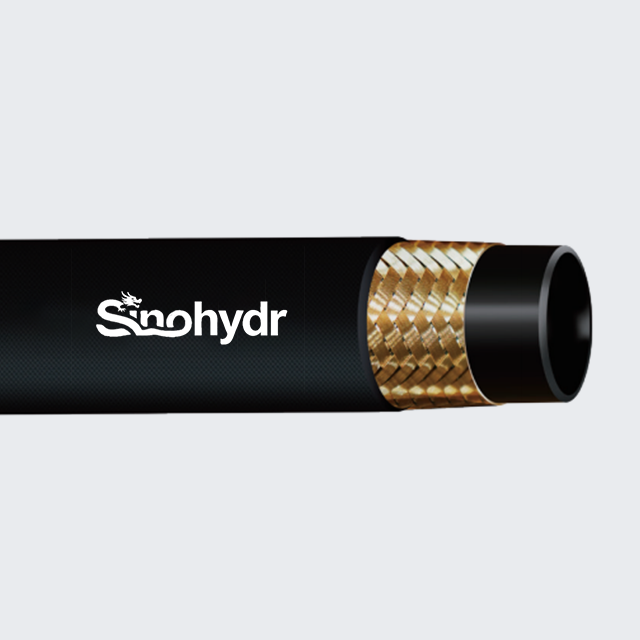

Our double wire braided hydraulic hose (2SC series) delivers industry-leading working pressures up to 40.0MPa (5800psi), with a 4:1 safety factor ensuring reliable operation under extreme hydraulic loads. The 1SC series offers excellent performance for medium-pressure applications, with working pressures ranging from 8.8MPa to 22.5MPa.
The high-quality synthetic rubber inner tube provides excellent resistance to hydraulic fluids, while the high-tensile steel wire braid reinforcement offers superior burst strength and fatigue resistance. The outer cover is specially formulated to resist oil, weather, ozone, and abrasion, ensuring long service life even in harsh industrial environments.
This EN857 hydraulic hose operates reliably in temperatures from -40°C to +100°C for standard hydraulic fluids, and from 0°C to 70°C for water-based media. This broad temperature compatibility makes it suitable for use in diverse climate conditions and industrial settings.
Product Series | Nominal Diameter | Size | ID | W.D. | OD | W.P | B.P | Min.B.R | W.T | |||
2SC | mm | inch | min | max | min | max | min | max | Mpa | Mpa | mm | Kg/m |
2SC-04-06 | 6.3 | 1/4'' | 6.1 | 6.9 | 11.2 | 12.2 | 12.9 | 14.3 | 40.0 | 160.0 | 75.0 | 0.28 |
2SC-05-08 | 8 | 5/16'' | 7.7 | 8.5 | 12.8 | 13.8 | 14.5 | 15.9 | 35.0 | 140.0 | 85.0 | 0.32 |
2SC-06-10 | 10 | 3/8'' | 9.3 | 10.1 | 14.9 | 15.9 | 16.8 | 18.2 | 33.0 | 132.0 | 90.0 | 0.43 |
2SC-08-12.5 | 12.5 | 1/2'' | 12.3 | 13.5 | 18.0 | 19.2 | 20.0 | 21.6 | 27.5 | 110.0 | 130.0 | 0.52 |
2SC-10-16 | 16 | 5/8'' | 15.5 | 16.7 | 21.4 | 22.6 | 23.2 | 24.8 | 25.0 | 100.0 | 170.0 | 0.60 |
2SC-12-19 | 19 | 3/4'' | 18.6 | 19.8 | 25.0 | 26.4 | 27.4 | 29.0 | 21.5 | 86.0 | 200.0 | 0.83 |
2SC-16-25 | 25 | 1'' | 25.0 | 26.4 | 32.4 | 33.8 | 34.5 | 36.1 | 16.5 | 66.0 | 250.0 | 1.17 |
Product Series | Nominal Diameter | Size | ID | W.D. | OD | W.P | B.P | Min.B.R | W.T | |||
1SC | mm | inch | min | max | min | max | min | max | Mpa | Mpa | mm | Kg/m |
1SC-04-06 | 6.3 | 1/4'' | 6.1 | 6.9 | 9.6 | 10.8 | 11.8 | 13.2 | 22.5 | 90.0 | 75.0 | 0.18 |
1SC-05-08 | 8 | 5/16'' | 7.7 | 8.5 | 10.9 | 12.1 | 13.1 | 14.5 | 21.5 | 86.0 | 85.0 | 0.20 |
1SC-06-10 | 10 | 3/8'' | 9.3 | 10.1 | 12.7 | 14.5 | 15.1 | 16.5 | 18.0 | 72.0 | 90.0 | 0.27 |
1SC-08-12.5 | 12.5 | 1/2'' | 12.3 | 13.5 | 15.9 | 18.1 | 18.9 | 20.3 | 16.0 | 64.0 | 130.0 | 0.35 |
1SC-10-16 | 16 | 5/8'' | 15.5 | 16.7 | 19.8 | 21.0 | 21.9 | 23.3 | 13.0 | 52.0 | 150.0 | 0.42 |
1SC-12-19 | 19 | 3/4'' | 18.6 | 19.8 | 23.2 | 24.4 | 25.6 | 27.2 | 10.5 | 42.0 | 180.0 | 0.54 |
1SC-16-25 | 25 | 1'' | 25.0 | 26.4 | 30.7 | 31.9 | 33.2 | 34.8 | 8.8 | 35.2 | 230.0 | 0.78 |
Note: Custom specifications are available upon request to meet your specific application requirements.
Our ISO11237 hydraulic hose is widely used in various industrial sectors for conveying hydraulic fluids including glycol, mineral oil, lubrication oil, emulsion, and hydrocarbons. It is particularly suitable for:
Construction machinery and equipment
Agricultural machinery and tractors
Industrial hydraulic systems
Material handling equipment
Mining machinery
Marine hydraulic systems
Important: This hose is not suitable for conveying phosphate ester-based fluids.
The 1SC series features a single layer of high-tensile steel wire braid reinforcement, making it ideal for medium-pressure hydraulic applications. The 2SC series has two layers of steel wire braid, providing significantly higher working pressure and burst strength for heavy-duty high-pressure applications.
Yes, our compact wire braided hydraulic hose is compatible with water-based hydraulic fluids and emulsions. However, when conveying water, the maximum working temperature is limited to 70°C.
We offer flexible order quantities to accommodate the needs of industrial buyers. For standard-length hoses, we accept small orders, while custom-length assemblies can be produced with minimum quantities tailored to your requirements.
Yes, we offer complete hydraulic hose assembly services, including crimping of fittings to your specifications. All assemblies are pressure-tested to ensure reliable performance.
