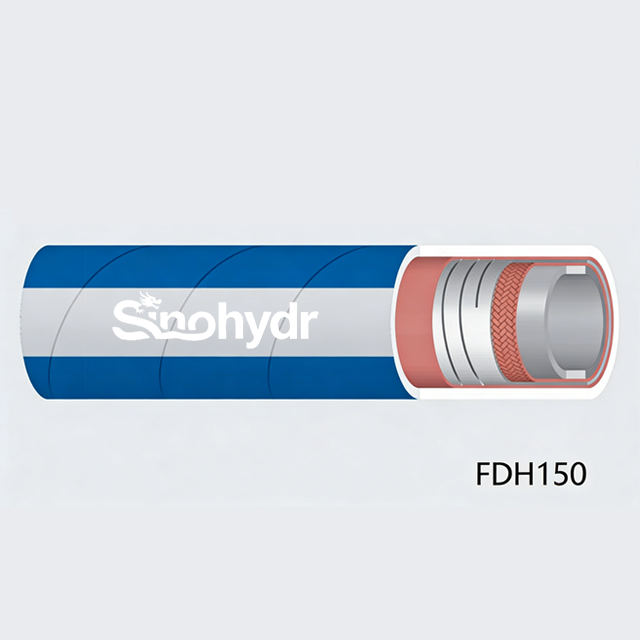

Our FDA grade hose (Model FDH150) is a premium food-grade suction and discharge hose engineered to meet the strictest hygiene standards for food and beverage processing applications. Manufactured with NBR (Nitrile Butadiene Rubber) for both the inner tube and outer cover, this hose delivers exceptional resistance to animal fats and vegetable oils while maintaining full compliance with FDA food contact regulations. The reinforced construction features high tensile textile cords combined with a continuous helix steel wire, providing excellent flexibility and superior vacuum capability for full suction and discharge operations. With an impressive working temperature range of -20°C to 120°C and a 3:1 safety factor, this food grade rubber hose ensures reliable performance in demanding industrial food processing environments. Available in multiple standard sizes from 19mm to 152mm inner diameter, our FDA approved hose comes in blue and green colors for easy identification and can be customized to meet your specific operational requirements.
Our FDA grade rubber hose is manufactured using materials that fully comply with FDA food contact regulations, making it safe for transferring food products and potable water. The smooth NBR inner tube prevents bacterial growth and ensures easy cleaning, maintaining the highest hygiene standards required by the food and beverage industry.
The NBR construction provides outstanding resistance to animal fats, vegetable oils, and common food-based chemicals, extending hose service life and reducing replacement costs. This oil resistant food hose maintains its integrity even when exposed to fatty substances that would degrade standard rubber hoses.
The combination of high tensile textile cords and continuous helix steel wire reinforcement delivers excellent structural integrity, allowing the hose to withstand full vacuum conditions and high pressure applications. This design prevents kinking, crushing, and collapse, ensuring uninterrupted fluid transfer operations.
With an operating temperature range of -20°C to 120°C, this potable water transfer hose performs reliably in both cold and hot processing environments, eliminating the need for multiple hose types for different temperature applications.
I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
19 | 3/4" | 30 | 150 | 10 | 450 | 30 | 100 | 0.67 | 200 | 61 |
25 | 1" | 36 | 150 | 10 | 450 | 30 | 150 | 0.84 | 200 | 61 |
32 | 1-1/4" | 44 | 150 | 10 | 450 | 30 | 190 | 1.2 | 200 | 61 |
38 | 1-1/2" | 51 | 150 | 10 | 450 | 30 | 220 | 1.5 | 200 | 61 |
51 | 2" | 64 | 150 | 10 | 450 | 30 | 300 | 1.93 | 200 | 61 |
64 | 2-1/2" | 78 | 150 | 10 | 450 | 30 | 380 | 2.55 | 200 | 61 |
76 | 3" | 90 | 150 | 10 | 450 | 30 | 450 | 3.08 | 200 | 61 |
102 | 4" | 120 | 150 | 10 | 450 | 30 | 550 | 4.97 | 200 | 61 |
152 | 6" | 171 | 150 | 10 | 450 | 30 | 750 | 8.17 | 100 | 30.5 |
Note: Custom specifications, lengths, and colors are available upon request to meet your unique operational needs.
Our FDA grade suction discharge hose is ideal for a wide range of food and beverage processing applications where hygiene and safety are paramount. It is specifically designed for the suction and discharge of:
Potable drinking water
Dairy products including milk, cream, and yogurt
Fruit juices, soft drinks, and non-alcoholic beverages
Edible oils and fats
Liquid food ingredients and concentrates
Brewery and winery processing fluids
This versatile hose is suitable for use in food manufacturing plants, beverage production facilities, dairies, breweries, wineries, and commercial kitchens where reliable, food-safe fluid transfer is essential.
FDA grade means the hose materials have been tested and approved by the U.S. Food and Drug Administration for safe contact with food and beverages. This ensures no harmful substances will leach into the products being transferred.
Yes, our FDA grade hose can safely handle liquids up to 120°C, making it suitable for hot water, hot beverages, and heated food processing applications.
Absolutely. The NBR construction provides excellent resistance to animal fats and vegetable oils, which is critical for food processing applications involving fatty substances.
The helix steel wire reinforcement allows this hose to withstand full vacuum conditions, making it suitable for both suction and discharge operations.
Yes, we offer custom lengths, colors, and end fittings to meet your specific requirements. Contact our technical team to discuss your customization needs.
