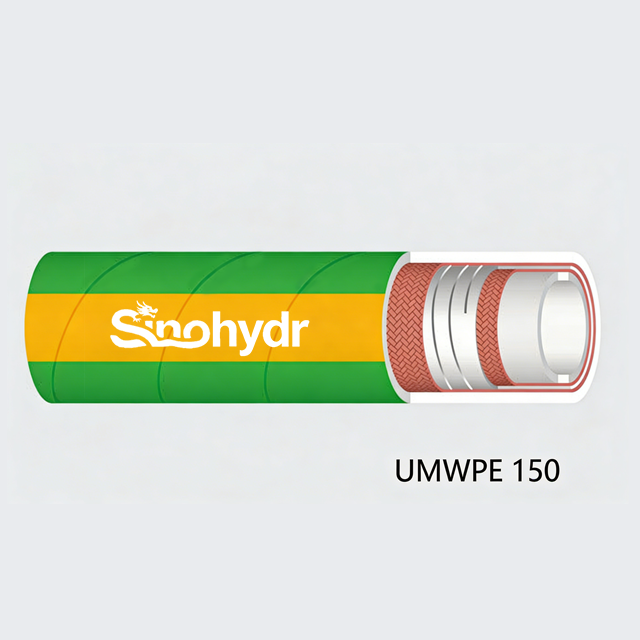

Our chemical suction & discharge hose is a premium industrial solution engineered for safe and reliable transfer of aggressive fluids. Constructed with a UHMWPE+EPDM inner tube, high tensile textile cord reinforcement with helix steel wire, and a durable EPDM synthetic rubber cover, this flexible chemical hose delivers exceptional performance in the most demanding chemical handling environments. With an impressive operating temperature range of -40℃ to 120℃ and a 3:1 safety factor, our corrosive liquid hose ensures consistent operation across extreme conditions. Available in blue and green colors, it comes in standard lengths up to 61 meters with custom specifications available to meet your unique operational needs. This acid resistant rubber hose is designed to handle suction and discharge applications, making it an essential component for chemical processing, manufacturing, and industrial facilities worldwide.
The UHMWPE chemical hose features an ultra-high molecular weight polyethylene inner liner that provides outstanding resistance to a wide range of acids, alkalis, solvents, and corrosive liquids. This superior chemical compatibility prevents degradation, extends service life, and reduces the risk of costly leaks and spills that can lead to downtime and environmental hazards.
Reinforced with high tensile textile cord embedded with a continuous helix steel wire, our alkali resistant hose offers excellent vacuum resistance and pressure stability. This robust construction prevents kinking, collapsing, and bursting, ensuring reliable performance even under full vacuum conditions and high-pressure transfer operations.
Despite its heavy-duty construction, our solvent transfer hose remains highly flexible and easy to handle. This flexibility simplifies installation, reduces operator fatigue, and allows for easy routing around equipment and in tight spaces, improving overall operational efficiency.
With an operating temperature range from -40℃ to 120℃, this chemical suction & discharge hose performs reliably in both freezing and high-temperature environments. This versatility eliminates the need for multiple hose types for different temperature applications, reducing inventory costs and simplifying maintenance.
The combination of premium materials and advanced manufacturing techniques ensures our corrosive liquid hose delivers exceptional durability and longevity. This reduces replacement frequency, lowers total cost of ownership, and minimizes production interruptions caused by hose failures.
I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
19 | 3/4" | 30 | 150 | 10 | 450 | 30 | 100 | 0.67 | 200 | 61 |
25 | 1" | 36 | 150 | 10 | 450 | 30 | 150 | 0.84 | 200 | 61 |
32 | 1-1/4" | 44 | 150 | 10 | 450 | 30 | 190 | 1.2 | 200 | 61 |
38 | 1-1/2" | 51 | 150 | 10 | 450 | 30 | 220 | 1.5 | 200 | 61 |
51 | 2" | 64 | 150 | 10 | 450 | 30 | 300 | 1.93 | 200 | 61 |
64 | 2-1/2" | 78 | 150 | 10 | 450 | 30 | 380 | 2.55 | 200 | 61 |
76 | 3" | 90 | 150 | 10 | 450 | 30 | 450 | 3.08 | 200 | 61 |
102 | 4" | 120 | 150 | 10 | 450 | 30 | 550 | 4.97 | 200 | 61 |
152 | 6" | 171 | 150 | 10 | 450 | 30 | 750 | 8.17 | 100 | 30.5 |
Note: Custom diameters, lengths, and pressure ratings are available upon request.
Our chemical suction & discharge hose is widely used across various industries for transferring acids, alkalis, solvents, and other corrosive liquids. It is ideal for chemical processing plants, pharmaceutical manufacturing facilities, food and beverage production, water treatment plants, and industrial cleaning operations. Additionally, it is commonly used in tanker truck unloading, chemical storage tank transfer, and laboratory applications where safe and reliable fluid handling is critical.
Our UHMWPE chemical hose is designed to handle a wide range of acids, alkalis, solvents, and corrosive liquids. For specific chemical compatibility information, please contact our technical support team.
The ideal working temperature range is -40℃ to 120℃. For temperatures outside this range, please consult our engineering team for alternative solutions.
Yes, the helix steel wire reinforcement provides excellent vacuum resistance, making it suitable for both suction and discharge operations.
Yes, we support full customization including different lengths, diameters, and pressure ratings to meet your specific requirements.
All our chemical suction & discharge hoses are manufactured with a 3:1 safety factor, ensuring reliable and safe operation under normal working conditions.
