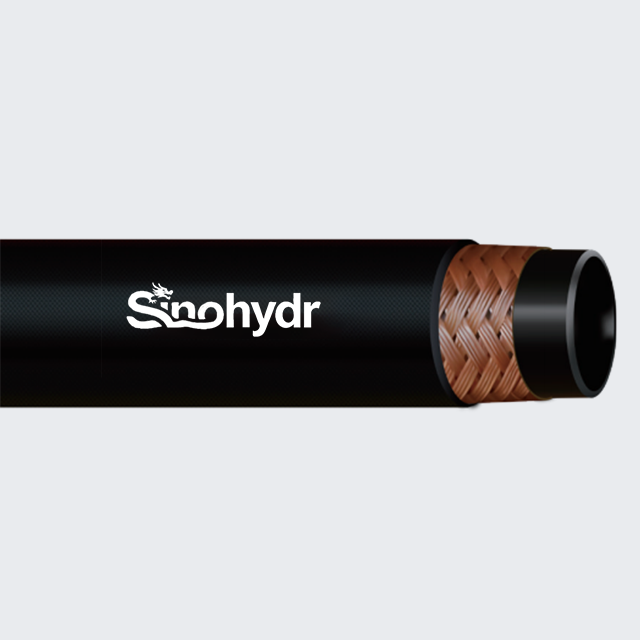

SAE 100 R6 hydraulic hose is a high-quality fiber braid reinforced hydraulic solution designed for low to medium pressure applications. Featuring an oil-resistant synthetic rubber inner tube, a single textile fiber braid reinforcement, and a robust oil and weather resistant synthetic rubber cover, this hose offers excellent flexibility and cost-effectiveness for general hydraulic systems. Our SAE 100 R6 rubber hose is manufactured to meet SAE J517 standards, ensuring consistent performance and compatibility with standard hydraulic components.
This low pressure hydraulic hose R6 is engineered to convey various hydraulic fluids including glycol, mineral oil, lubricants, emulsions, and hydrocarbons. It operates reliably within a temperature range of -40℃ to +100℃ for most hydraulic fluids, and 0℃ to 70℃ for water-based media. It is important to note that this hose should not be used with phosphate ester-based fluids. Available in 7 standard sizes from 5mm (3/16") to 19mm (3/4") nominal diameter, our SAE 100 R6 oil resistant hose can be tailored to your specific application needs with custom lengths and fittings.
The textile fiber braid reinforcement provides exceptional flexibility, making our flexible hydraulic hose SAE 100 R6 easy to route and install in complex hydraulic systems. This flexibility reduces installation time and minimizes stress on the hose and fittings, extending the overall service life.
Compared to wire braid hoses, our fiber braid hydraulic hose is significantly lighter, making it easier to handle and install. This lightweight design also reduces the overall weight of hydraulic systems, which is particularly beneficial for mobile equipment applications.
SAE 100 R6 hydraulic hose offers an economical alternative to higher pressure wire braid hoses for low to medium pressure applications. It provides reliable performance at a lower cost, making it an ideal choice for general hydraulic systems.
The oil and weather resistant synthetic rubber cover provides good protection against abrasion, ozone, and UV exposure, ensuring long-lasting performance in both indoor and outdoor environments. The synthetic rubber inner tube offers excellent resistance to hydraulic fluids, preventing premature degradation.
Our SAE 100 R6 hydraulic hose is compatible with all standard hydraulic fittings and components, making it easy to integrate into existing systems. It is available in a range of sizes to accommodate different flow rates and pressure requirements.
Product Series | Nominal Diameter | Size | ID | OD | W.P | B.P | Min.B.R | W.T | ||
R6 | mm | inch | min | max | min | max | Mpa | Mpa | mm | Kg/m |
R6-03-05 | 5 | 3/16“ | 4.6 | 5.5 | 11.0 | 12.2 | 3.4 | 13.6 | 50 | 0.10 |
R6-04-06 | 6 | 1/4“ | 6.1 | 7.2 | 12.4 | 13.6 | 2.8 | 11.2 | 65 | 0.13 |
R6-05-08 | 8 | 5/16” | 7.9 | 8.7 | 14.2 | 15.4 | 2.8 | 11.2 | 75 | 0.16 |
R6-06-10 | 10 | 3/8“ | 10.3 | 11.1 | 15.7 | 16.9 | 2.8 | 11.2 | 75 | 0.18 |
R6-08-12.5 | 13 | 1/2“ | 12.7 | 13.7 | 19.5 | 21.1 | 2.8 | 11.2 | 100 | 0.25 |
R6-10-16 | 16 | 5/8” | 15.9 | 17.0 | 22.7 | 24.6 | 2.4 | 9.6 | 125 | 0.29 |
R6-12-19 | 19 | 3/4“ | 18.2 | 19.8 | 26.2 | 27.8 | 2.1 | 8.4 | 150 | 0.37 |
Note: Custom specifications are available upon request.
Our SAE 100 R6 hydraulic hose is widely used in various industrial and commercial applications where low to medium pressure hydraulic fluid transfer is required. It is commonly found in:
General industrial machinery and equipment
Automotive and light truck hydraulic systems
Agricultural machinery and implements
Material handling equipment including pallet jacks and small forklifts
Construction equipment auxiliary systems
Marine and recreational vehicles
Pneumatic and low-pressure hydraulic systems
This hose is particularly suitable for applications that require high flexibility and ease of installation, where the operating pressure does not exceed the rated working pressure of the hose.
The main difference is the reinforcement material. SAE 100 R5 uses a single steel wire braid for higher pressure applications, while SAE 100 R6 uses a single textile fiber braid for lower pressure applications that require greater flexibility.
The minimum bend radius varies by size, ranging from 50mm for the 5mm (3/16") hose to 150mm for the 19mm (3/4") hose.
Yes, SAE 100 R6 hose is suitable for low-pressure pneumatic applications in addition to hydraulic applications.
The temperature range is -40℃ to +100℃ for most hydraulic fluids. For water-based media, the temperature range is 0℃ to 70℃.
Yes, we offer complete custom hose assemblies with a wide range of fittings to meet your specific application requirements.
