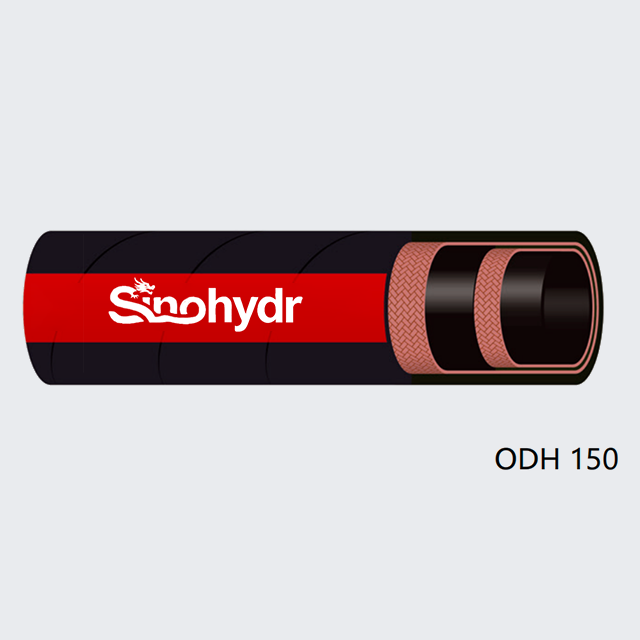

Sinohydr ODH 150 Hydraulic Oil Delivery Hose is a premium-grade flexible hose engineered specifically for reliable hydraulic oil transfer in industrial and mobile equipment. Manufactured to meet GB/T15329.1-2003 standards, this hydraulic oil delivery hose features a robust three-layer construction that delivers exceptional performance, durability, and safety in demanding operating environments. With a 3:1 safety factor and a working temperature range of -20°C to 80°C, our oil delivery hydraulic hose provides consistent performance across a wide range of conditions, making it the preferred choice for equipment manufacturers and maintenance professionals worldwide.
Our hydraulic pipeline return hose is designed with a nitrile rubber (NBR) and styrene-butadiene rubber (SBR) inner tube that offers excellent resistance to oil mist and hydraulic fluids. The high tensile textile cord reinforcement provides superior strength while maintaining flexibility, ensuring easy installation and operation. The natural rubber (NR) and SBR outer cover delivers outstanding abrasion resistance and weather protection, extending service life and reducing replacement costs. Available in 13 standard sizes from 6mm to 102mm inner diameter, the ODH 150 hydraulic hose can be customized to meet your specific application requirements.
The NBR+SBR inner tube of our hydraulic oil transfer hose provides exceptional resistance to oil mist and mineral-based hydraulic fluids, preventing degradation and ensuring long-term performance. The high-quality rubber compounds resist swelling, cracking, and hardening, even with continuous exposure to hydraulic oils.
Our high tensile textile cord reinforced hydraulic hose strikes the perfect balance between structural integrity and flexibility. The reinforcement layer delivers the necessary strength to handle working pressures up to 20 bar (300 psi) while maintaining excellent bend radius characteristics, allowing for easy routing in tight spaces.
The NR+SBR outer cover provides excellent resistance to abrasion, weathering, and ozone, protecting the hose from environmental damage. This durable construction significantly extends service life, reducing downtime and maintenance costs for your operations.
With a 3:1 safety factor, our hydraulic return line hose provides an extra margin of safety against pressure surges and unexpected loads. All hoses are rigorously tested to ensure compliance with international standards, giving you peace of mind in critical applications.
I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
6 | 1/4" | 14 | 300 | 20 | 900 | 60 | 60 | 0.18 | 328 | 100 |
8 | 5/16" | 16 | 300 | 20 | 900 | 60 | 80 | 0.21 | 328 | 100 |
10 | 3/8" | 18 | 300 | 20 | 900 | 60 | 100 | 0.25 | 328 | 100 |
13 | 1/2" | 22 | 300 | 20 | 900 | 60 | 130 | 0.36 | 328 | 100 |
16 | 5/8" | 26 | 300 | 20 | 900 | 60 | 160 | 0.48 | 328 | 100 |
19 | 3/4" | 29 | 300 | 20 | 900 | 60 | 190 | 0.55 | 328 | 100 |
25 | 1" | 36 | 300 | 20 | 900 | 60 | 250 | 0.78 | 328 | 100 |
32 | 1-1/4" | 44 | 300 | 20 | 900 | 60 | 250 | 1.06 | 200 | 61 |
38 | 1-1/2" | 52 | 300 | 20 | 900 | 60 | 300 | 1.41 | 200 | 61 |
51 | 2" | 65 | 300 | 20 | 900 | 60 | 400 | 1.82 | 200 | 61 |
64 | 2-1/2" | 78 | 300 | 20 | 900 | 60 | 500 | 2.3 | 200 | 61 |
76 | 3" | 90 | 300 | 20 | 900 | 60 | 600 | 2.68 | 200 | 61 |
102 | 4" | 119 | 300 | 20 | 900 | 60 | 800 | 4.21 | 200 | 61 |
Note: Custom specifications, lengths, and end fittings are available upon request.
Sinohydr ODH 150 Hydraulic Oil Delivery Hose is ideal for a wide range of industrial and mobile applications where reliable hydraulic oil transfer is essential. It is commonly used in:
Hydraulic system return lines in construction machinery
Agricultural equipment hydraulic circuits
Industrial machinery hydraulic pipelines
Material handling equipment
Mining equipment hydraulic systems
Marine hydraulic applications
Automotive manufacturing equipment
This hydraulic oil return hose is particularly well-suited for applications requiring strong resistance to oil mist and where a combination of strength, flexibility, and long service life is critical. Its robust construction ensures reliable performance even in harsh operating conditions, making it an essential component for any hydraulic system.
The ODH 150 hydraulic oil delivery hose has a maximum working pressure of 20 bar (300 psi) across all sizes, with a burst pressure of 60 bar (900 psi) providing a 3:1 safety factor.
This hose is designed for use with mineral-based hydraulic oils and fluids with aromatic hydrocarbon content not exceeding 20%. It is not recommended for use with synthetic oils, fuels, or aggressive chemicals.
Yes, we offer custom lengths and a wide range of end fittings to meet your specific requirements. Our engineering team can work with you to design a complete hose assembly tailored to your application.
The minimum bend radius varies by size, ranging from 60mm for the 6mm inner diameter hose to 800mm for the 102mm inner diameter hose. Please refer to our detailed specification table for exact values.
Hydraulic hoses should be stored in a cool, dry, dark place away from direct sunlight, ozone sources, and extreme temperatures. They should be kept in their original packaging and stored horizontally to prevent kinking and deformation.
