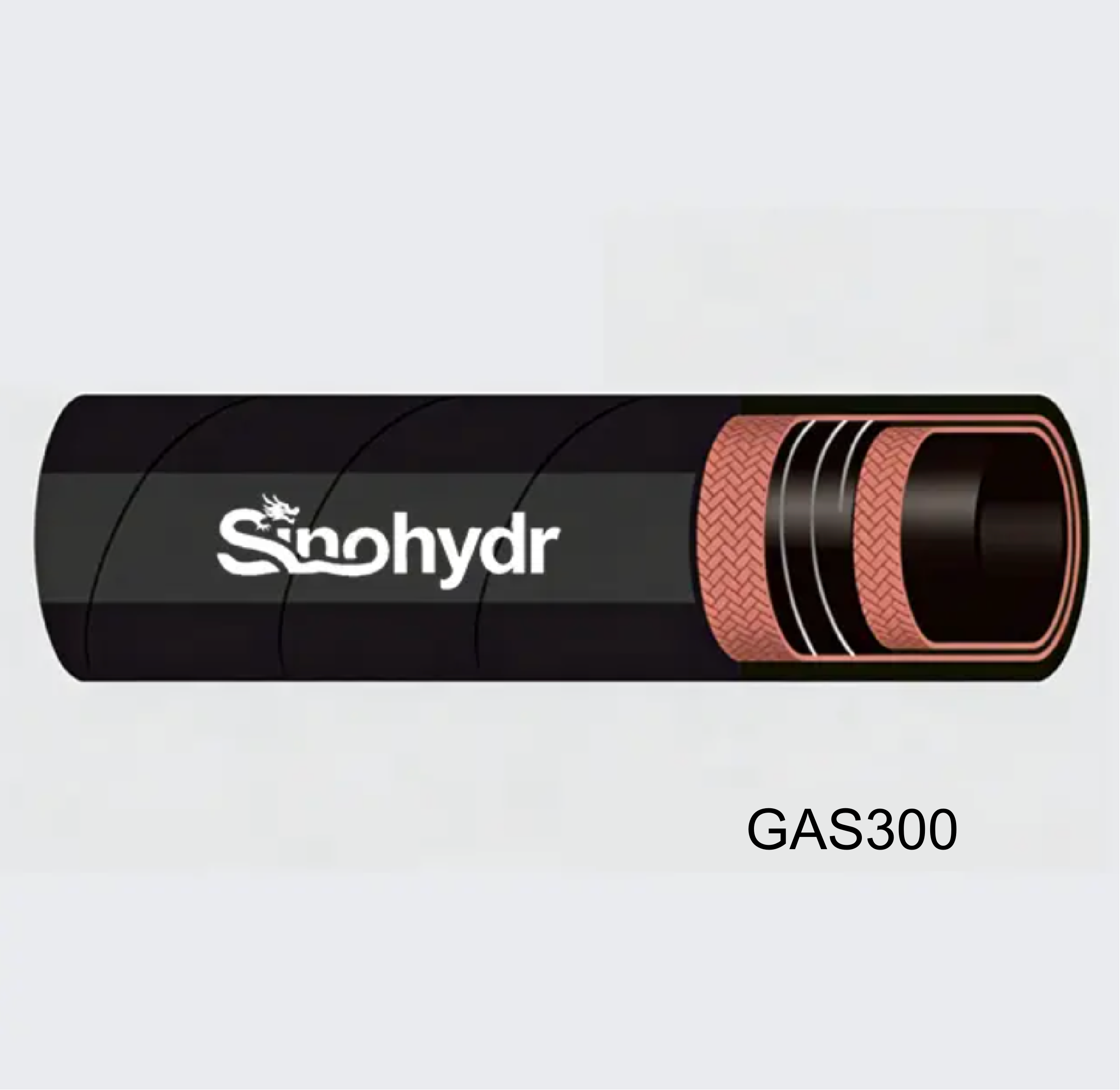

Sinohydr GAS300 Gas Hose is a specialized industrial hose designed for safe and reliable gas transfer in mining and industrial applications. Manufactured to HG/T2540-93 standards, this antistatic gas hose features a comprehensive five-layer construction with integrated antistatic copper wire, making it ideal for use in potentially explosive environments. With a 3:1 safety factor and an operating temperature range of -20°C to 80°C, our mining gas drainage hose delivers exceptional safety, performance, and durability in the most demanding conditions.
Our underground gas hose is constructed with a nitrile rubber (NBR) inner tube that provides excellent resistance to gases and hydrocarbons. The reinforcement layer combines high tensile textile cord, helix steel wire, and continuous antistatic copper wire, ensuring both structural integrity and electrical conductivity. The NBR+CR outer cover offers superior flame retardancy, abrasion resistance, and weather protection, making it suitable for use in harsh mining environments. Available in 10 standard sizes from 19mm to 203mm inner diameter, the GAS300 industrial gas hose can be customized to meet your specific requirements.
The integrated continuous copper antistatic wire ensures complete electrical conductivity along the entire length of the hose, preventing the buildup of static electricity that could ignite flammable gases. This critical safety feature makes our antistatic gas transfer hose essential for use in explosive atmospheres.
The NBR+CR outer cover is formulated with flame-retardant additives that slow the spread of fire and reduce smoke generation. This enhanced safety feature provides additional protection in mining and industrial environments where fire hazards exist.
The combination of high tensile textile cord and helix steel wire reinforcement provides exceptional strength and resistance to kinking, crushing, and abrasion. This robust construction ensures the hose can withstand the rigors of underground mining operations.
With a 3:1 safety factor and rigorous quality testing, our coal mine gas drainage hose provides reliable performance and peace of mind in critical safety applications. All hoses are manufactured to strict industry standards and undergo thorough inspection before shipment.
ID | OD | W.P | B.P | B.R. | Weight | Length | ||||
mm | inch | mm | psi | bar | psi | bar | mm | Kg/m | ft | m |
19 | 3/4" | 30 | 150 | 10 | 450 | 30 | 100 | 0.69 | 200 | 61 |
25 | 1" | 36 | 150 | 10 | 450 | 30 | 150 | 0.86 | 200 | 61 |
32 | 1-1/4" | 44 | 150 | 10 | 450 | 30 | 190 | 1.23 | 200 | 61 |
38 | 1-1/2" | 51 | 150 | 10 | 450 | 30 | 220 | 1.54 | 200 | 61 |
51 | 2" | 64 | 150 | 10 | 450 | 30 | 300 | 1.98 | 200 | 61 |
64 | 2-1/2" | 78 | 150 | 10 | 450 | 30 | 380 | 2.61 | 200 | 61 |
76 | 3" | 90 | 150 | 10 | 450 | 30 | 450 | 3.16 | 200 | 61 |
102 | 4" | 120 | 150 | 10 | 450 | 30 | 550 | 4.59 | 200 | 61 |
152 | 6" | 171 | 150 | 10 | 450 | 30 | 750 | 8.58 | 100 | 30.5 |
203 | 8" | 224 | 150 | 10 | 450 | 30 | 1100 | 12.71 | 100 | 30.5 |
Note: Custom specifications, lengths, and end connections are available upon request.
Sinohydr GAS300 Gas Hose is specifically designed for gas transfer applications in mining and industrial environments where safety is paramount. It is primarily used for:
Coal mine underground gas drainage systems
Methane and natural gas transfer
Industrial gas distribution systems
Ventilation systems in mining operations
Oil and gas industry applications
Chemical plant gas transfer
Wastewater treatment gas systems
Landfill gas collection
This flame retardant gas hose is particularly well-suited for applications involving flammable gases and potentially explosive atmospheres. Its antistatic and flame-retardant properties make it the safest choice for gas transfer in mining operations, where even a small spark could have catastrophic consequences.
Yes, the GAS300 gas hose features a continuous copper antistatic wire running the entire length of the hose, ensuring complete electrical conductivity and preventing static electricity buildup.
This hose is designed for use with methane, natural gas, and other non-corrosive industrial gases. It is not recommended for use with corrosive gases or liquids.
Absolutely. The GAS300 coal mine gas drainage hose is specifically designed and certified for use in underground mining operations, meeting all relevant safety standards for explosive atmospheres.
The NBR+CR outer cover is formulated with high-performance flame-retardant additives that meet industry standards for flame resistance in mining applications. Please contact our technical team for specific test data.
Both ends of the hose must be properly grounded to the equipment using the integrated copper wire. Ensure all connections are clean and tight to maintain continuous electrical conductivity throughout the system.
