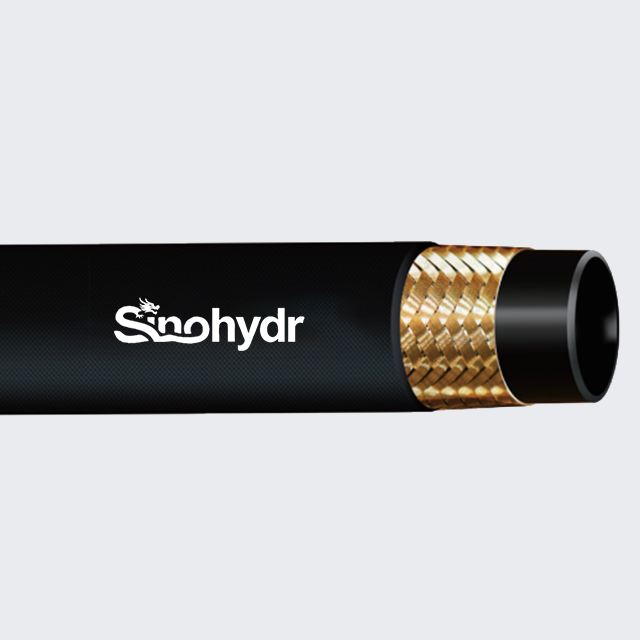

Our Ultra-high Pressure Wear-resistant Cleaning Tube is a specialized industrial cleaning solution, engineered for industrial cleaning service providers, surface treatment contractors, and municipal maintenance teams requiring exceptional pressure resistance and wear durability in high-intensity cleaning operations. This ultra-wear-resistant cleaning tube features a robust three-layer construction: a high-performance oil and abrasion-resistant synthetic rubber inner tube, a high-tensile single or multi-layer wire braid reinforcement, and a durable oil and weather-resistant synthetic rubber outer cover. Designed to withstand continuous ultra-high pressure operation, this tube delivers working pressures up to 100 MPa, making it the ideal choice for heavy-duty industrial cleaning, water jetting, and surface treatment applications. With a standard working temperature range from 0℃ up to +70℃, it maintains consistent performance across typical industrial cleaning environments, and is compatible with water, water-based cleaning solutions, glycol, mineral oil, and common industrial cleaning media.
The core advantage of our Ultra-high Pressure Wear-resistant Cleaning Tube is its exceptional ultra-high pressure capacity, with standard variants delivering working pressures from 18 MPa up to 100 MPa, and burst pressures up to 250 MPa. This extreme pressure resistance enables powerful water jetting and industrial cleaning performance, easily removing stubborn deposits, rust, paint, and surface contaminants from industrial equipment, building facades, and infrastructure. This eliminates the need for costly mechanical cleaning methods, boosting cleaning efficiency for commercial service providers.
Every SWJ series ultra-high pressure cleaning tube is built with a specialized ultra-wear-resistant formulation, designed to withstand the abrasive nature of high-velocity water and cleaning media. The inner tube features a high-abrasion-resistant synthetic rubber compound, preventing premature wear from suspended particles in cleaning solutions. The high-tensile wire braid reinforcement delivers exceptional structural integrity under extreme pressure, while the weather-resistant outer cover protects against external abrasion, kinking, and environmental damage during on-site cleaning operations. This construction drastically extends the tube’s service life, reducing replacement frequency and operational costs for industrial cleaning contractors.
Despite its ultra-high pressure rating, our industrial high pressure cleaning hose maintains excellent flexibility, with a minimum bend radius optimized for on-site maneuverability. This flexibility allows operators to easily navigate tight spaces, complex equipment geometries, and hard-to-reach areas during cleaning operations, reducing operator fatigue and improving cleaning accuracy. The tube’s balanced weight profile also ensures easy handling during extended cleaning projects.
Product Series | Nominal Diameter | Layer | Size | ID | OD | W.P | B.P | Min.B.R | ||
SWJ | mm | inch | min | max | min | max | Mpa | Mpa | mm | |
SWJ-6 | 3 | 1 | 1/4” | 5.5 | 6.5 | 14.7 | 15.7 | 22.5 | 90 | 100 |
SWJ-8 | 4 | 5/16“ | 7.5 | 8.5 | 16.5 | 17.5 | 21.5 | 88 | 115 | |
SWJ-10 | 5 | 3/8“ | 9.5 | 10.5 | 18.8 | 19.8 | 18 | 72 | 125 | |
SWJ-10 | 6 | 4 | 3/8“ | 9.7 | 10.1 | 21.3 | 21.7 | 100 | 250 | 300 |
SWJ-13 | 8 | 1/2” | 12.7 | 10.1 | 24.5 | 24.9 | 100 | 250 | 300 | |
NOTE: Other parameters are by your requirements.
Ideal for heavy-duty cleaning of manufacturing equipment, industrial machinery, construction vehicles, and processing plant infrastructure, easily removing grease, oil, rust, and production residues with high-pressure water jetting.
This tube delivers exceptional performance for surface preparation, paint removal, rust stripping, and concrete surface treatment, providing consistent ultra-high pressure output for precise and efficient surface processing.
Perfect for municipal cleaning operations including sewer jetting, road marking removal, building facade cleaning, and bridge maintenance, with durable construction designed to withstand the rigors of daily on-site municipal use.
Our Ultra-high Pressure Wear-resistant Cleaning Tube is compatible with water, water-based cleaning solutions, glycol, mineral oil, lubricants, emulsion, and common industrial hydrocarbons. It is not suitable for use with phosphate ester-based fluids or highly corrosive chemical cleaning agents without prior customization.
Our standard SWJ series high pressure cleaning tube offers working pressures up to 100 MPa, with custom configurations available for higher pressure requirements. Our engineering team can develop specialized solutions to match your specific ultra-high pressure cleaning needs.
Yes, we provide full custom assembly services for all ultra-high pressure cleaning tube variants, including compatible high-pressure end fittings, custom length cutting, and pressure testing to ensure leak-free performance for your cleaning operations.
