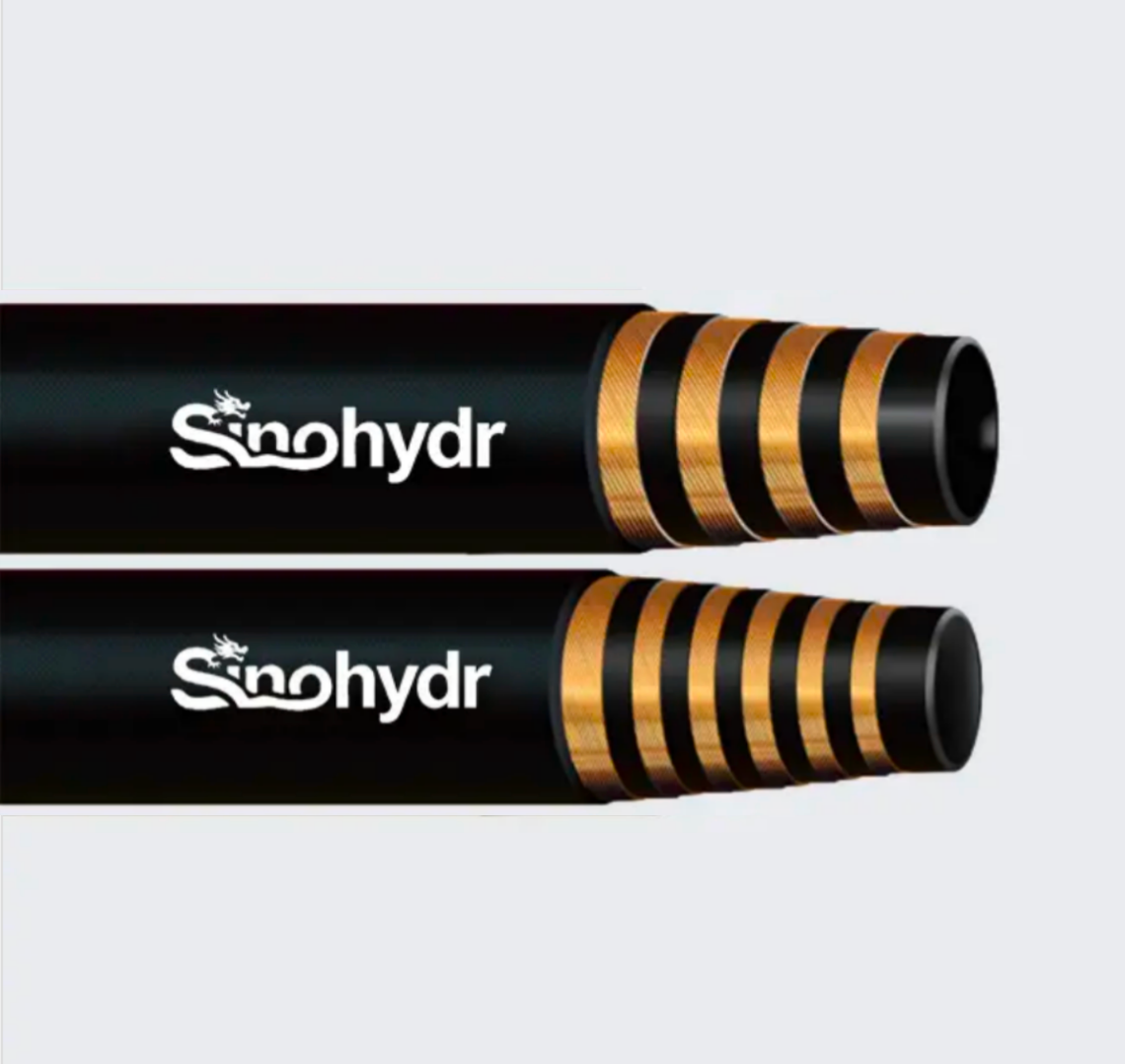

Introducing our premium SAE 100R15 multilayer wire ultra-high pressure wound hydraulic hose, specifically designed for the most demanding ultra-high pressure hydraulic applications. Featuring advanced construction with oil-resistant synthetic rubber inner tube, 4 or 6 layers of high-tensile steel wire spiral reinforcement, and a rugged oil- and weather-resistant rubber cover, this ultra-high pressure hydraulic hose delivers unmatched performance at working pressures up to 42 MPa. Manufactured to strict SAE 100R15 specifications, our high-tensile wire wound hydraulic hose offers exceptional burst resistance up to 168 MPa, making it the ideal choice for heavy-duty industrial operations where safety and reliability are paramount. With a comprehensive size range from 10 mm to 102 mm nominal diameter and a temperature range from -40℃ to +120℃, this industrial ultra-high pressure hose provides versatile solutions for the most challenging fluid transfer requirements.
The SAE 100R15 hydraulic hose is engineered to handle continuous working pressures up to 42 MPa with a 4:1 safety factor, providing burst resistance up to 168 MPa. This ultra-high pressure capability makes it suitable for the most demanding hydraulic systems that standard hoses cannot accommodate.
Our multilayer wire ultra-high pressure hose is available in 12 standard sizes ranging from 3/8 inch to 4 inch nominal diameter, covering virtually all ultra-high pressure hydraulic applications. This extensive size range ensures you can find the perfect hose for your specific system requirements.
The high-tensile steel wire spiral reinforcement combined with the premium rubber compounds provides excellent resistance to abrasion, oil, weather, and ozone. This superior durability significantly extends service life and reduces maintenance costs in harsh industrial environments.
Every SAE 100R15 ultra-high pressure hose undergoes rigorous quality testing to ensure consistent performance and reliability. Our advanced manufacturing processes ensure precise dimensional tolerances and uniform wall thickness for optimal hose performance.
Product Series | Nominal Diameter | Size | ID | W.D. | OD | W.P | B.P | Min.B.R | W.T | |
R15 | mm | inch | min | max | max | max | Mpa | Mpa | mm | Kg/m |
R15-06-10 | 10 | 3/8'' | 9.3 | 10.1 | 20.3 | 23.3 | 42 | 168 | 150 | 0.76 |
R15-08-12.5 | 12.5 | 1/2'' | 12.3 | 13.5 | 24 | 26.8 | 42 | 168 | 200 | 0.99 |
R15-10-16 | 16 | 5/8'' | 15.5 | 16.7 | 27 | 30.2 | 42 | 168 | 230 | 1.23 |
R15-12-19 | 19 | 3/4'' | 18.6 | 19.8 | 32.9 | 36.1 | 42 | 168 | 265 | 1.56 |
R15-16-25 | 25 | 1'' | 25 | 26.4 | 38.9 | 42.9 | 42 | 168 | 330 | 1.98 |
R15-20031.5 | 31.5 | 1-1/4'' | 31.4 | 33 | 48.4 | 51.5 | 42 | 168 | 445 | 2.89 |
R15-20-31.5T | 31.5T | 1-1/4'' | 31.4 | 33 | 48.4 | 51.5 | 42 | 168 | 445 | 2.89 |
R15-24-38 | 38 | 1-1/2'' | 37.7 | 39.3 | 56.3 | 59.6 | 42 | 168 | 530 | 4.25 |
R15-32-38 | 51 | 2'' | 50.4 | 52 | 69 | 72.6 | 42 | 168 | 660 | 5.43 |
R15-40-63 | 63 | 2-1/2'' | 63.9 | 65.1 | 82.6 | 88 | 42 | 168 | 1200 | 8.6 |
R15-48-78 | 78 | 3'' | 75.9 | 77.1 | 92.6 | 98.2 | 42 | 168 | 1300 | 9.6 |
R15-56-89 | 89 | 1-1/2'' | 88.5 | 90.5 | 106.8 | 113 | 42 | 168 | 1400 | 11.82 |
R15-64-102 | 102 | 4'' | 101.5 | 103.5 | 137 | 142.5 | 42 | 168 | 1500 | 13.25 |
Note: Additional sizes up to 102 mm (4 inch) nominal diameter are available. Custom specifications can be provided upon request.
Our SAE 100R15 multilayer wire ultra-high pressure wound hydraulic hose is specifically designed for ultra-high pressure hydraulic systems in heavy industry. It is extensively used in offshore drilling equipment, large construction machinery, mining operations, steel mills, and heavy-duty manufacturing equipment. This ultra-high pressure spiral hose is particularly suitable for hydraulic presses, injection molding machines, heavy lifting equipment, and hydraulic power units that operate at pressures exceeding 35 MPa. It is also widely used in hydraulic systems for marine applications, forestry equipment, and material handling machinery where extreme pressure performance is required. Like our other hydraulic hoses, it is not suitable for use with phosphate ester-based fluids.
The primary difference is the pressure rating. SAE 100R15 ultra-high pressure hydraulic hose has a working pressure of 42 MPa and burst pressure of 168 MPa, while SAE 100R13 has a working pressure of 35 MPa and burst pressure of 140 MPa. R15 also offers a more comprehensive size range.
Our SAE 100R15 hydraulic hose is available in sizes up to 102 mm (4 inch) nominal diameter, making it suitable for large-flow ultra-high pressure applications.
Yes, our multilayer wire ultra-high pressure wound hydraulic hose is suitable for offshore applications when properly installed and maintained. The oil- and weather-resistant cover provides excellent protection against marine environments.
All our SAE 100R15 hydraulic hoses are designed with a 4:1 safety factor, meaning the burst pressure is 4 times the rated working pressure, ensuring maximum safety in operation.
