Fiber High Pressure Resin Hose SAE100 R7

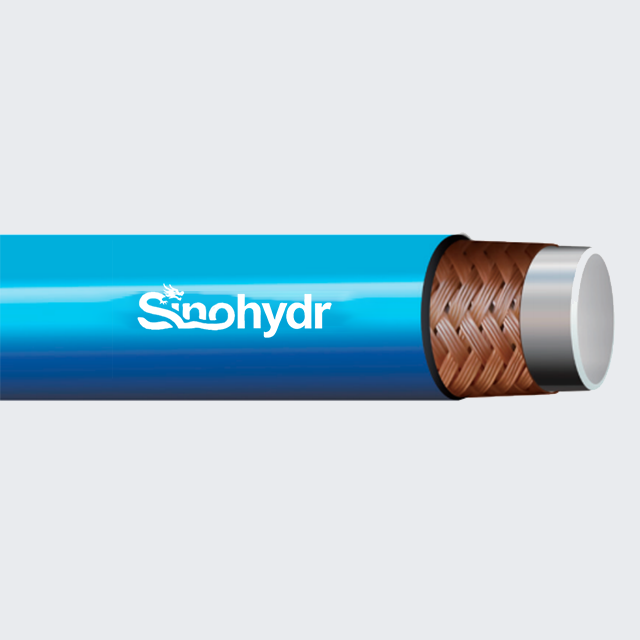

CONSTRUCTION: This hose consists of an inner tube of oil synthetic rubber,a single fiber braid reinforcement ,an oil and weather resistant rubber cover.

APPLICATIONS: Suitable for conveying hydraulic fluids such as glycol , mineral oil, lubrcation, emulsion, hydrocarbons etc, Water and air can not be used for conveying phosphate ester groups.

WORKING TEMPERATTUER: From -40℃ up to +100℃,the conveying medium temperature can be 0℃ to 70℃ if it is water.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Series	Nominal Diameter	Size	ID	OD	W.P	B.P	Min.B.R
R7	mm	inch	min	max	Mpa	Mpa	mm
R7-3-05	5	3/16“	4.6	10.3	21.0	84.0	35
R7-4-06	6	1/4“	6.1	12.7	22.5	90.0	50
R7-5-08	8	5/16”	7.9	14.3	19.0	76.0	50
R7-6-10	10	3/8“	10.3	15.9	17.5	70.0	80
R7-8-12.5	12.5	1/2“	12.7	19.8	14.0	56.0	100
R7-3-05	5	3/16”	4.6	10.3	25.0	100.0	55
R7-4-06	6	1/4“	6.1	13.3	27.4	109.6	75
R7-5-08	8	5/16”	7.9	15.0	26.0	104.0	85
R7-6-10	10	3/8“	10.3	18.0	25.0	100.0	100
R7-8-12.5	12.5	1/2”	12.7	21.6	21.0	84.0	140
R7-10-16	16	5/8“	15.9	23.6	16.0	64.0	165
R7-12-19	19	3/4”	19.0	26.4	14.0	56.0	195
R7-16-25	25	1“	25.4	34.0	10.5	42.0	256

NOTE: Other parameters are by your requirements.
