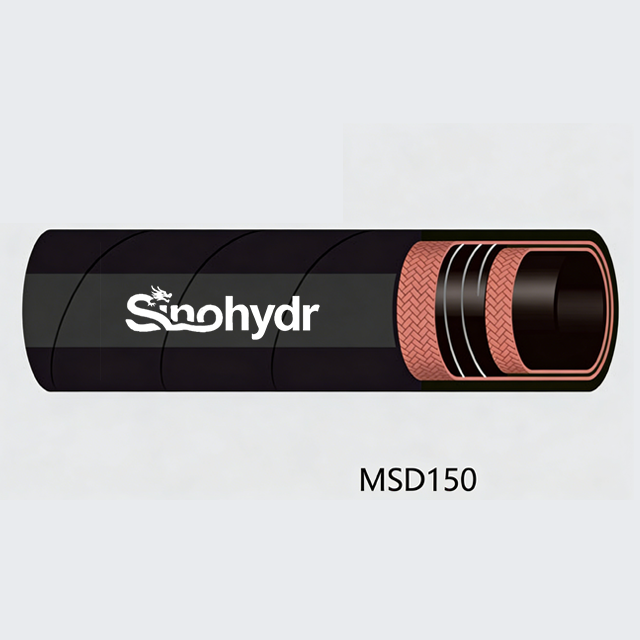

Material Suction And Discharge Hose

Tube: NR+BR
Reinforcement layer: High tensile textile cord, with helix steel wire, antistatic wire
Cover rubber: NR+SBR
Ideal wosking temperature: -20°C~80°C
Reference Standeand: HG/T2490-93
Safety factor: 3:1
Application: Abrasion resistant tube and cover fabricated with highestqualitymaterial. Used in the transfer of dry materials & slurry andideal fordry cement, pebble lime and other abrasive media

Availability:

Quantity:



Inquire Add to Basket

Product Description

I.D.		O.D.	W.P.		B.P.		Tubethickness	Weight	Length
mm	inch	mm	psi	bar	bar		mm	kg/m	ft	m
51	2"	67.4	150	10	450	30	4	1.73	200	61
64	2-1/2"	81.4	150	10	450	30	4	2.4	200	61
76	3"	95.8	150	10	450	30	5	3.18	200	61
102	4"	124.6	150	10	450	30	5	4.26	200	61
127	5"	151.2	150	10	450	30	5	5.55	100	30.5
152	6"	178.6	150	10	450	30	6	7.27	100	30.5

NOTE: Other parameters are by your requirements.
