Steel Wire Braided Hydraulic Hose With Constant Pressure (28.0MPA)

SAE100 R19 ISO11237
EN857恒压型（28.0Mpa）

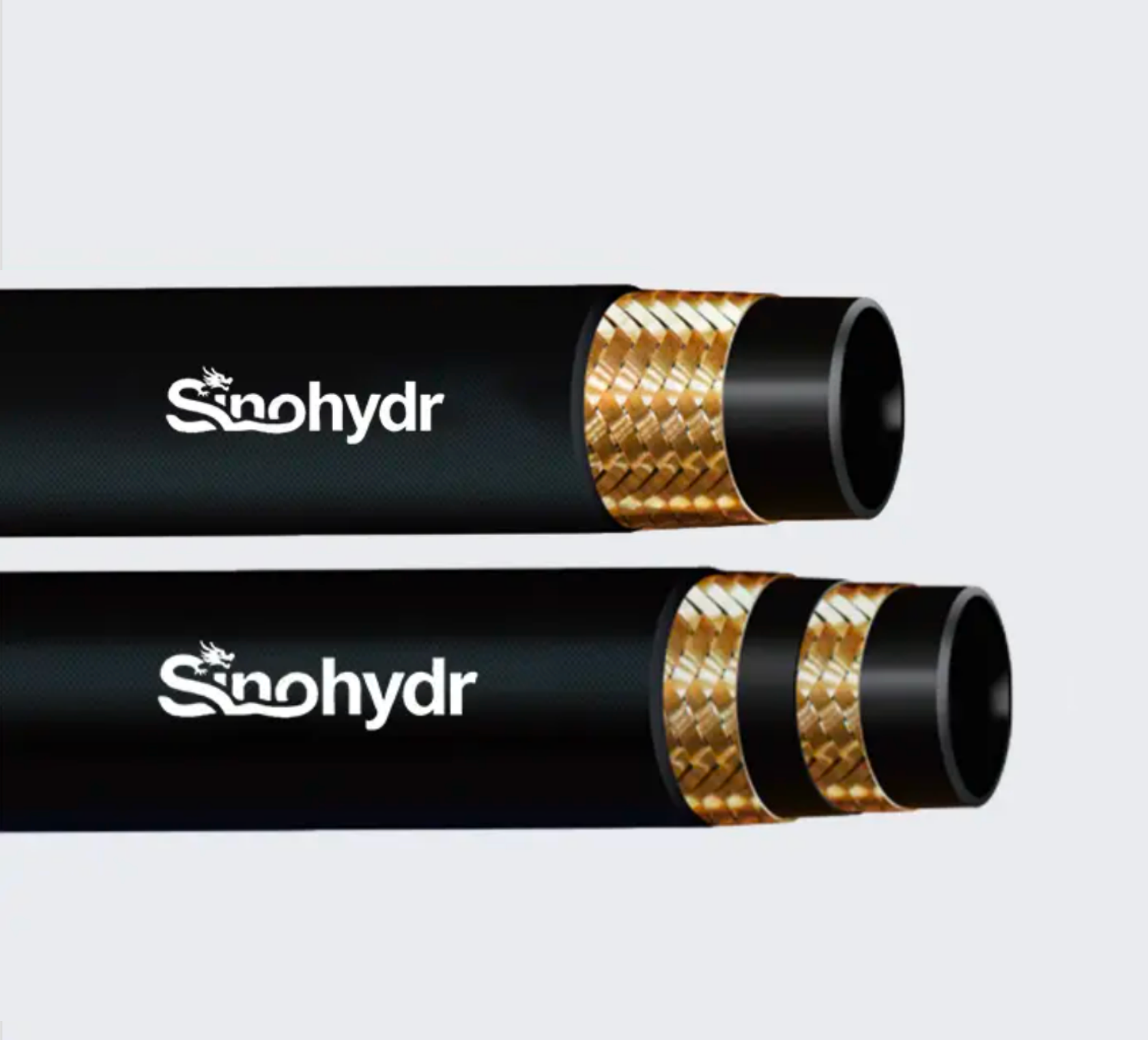

CONSTRUCTION:This hose consists of an inner tube of oil synthetic rubber,one or two layers of wire braid reinforcement ,an oil and weather resistant rubber cover.
APPLICATIONS:Suitable for conveying hydraulic fluids such as glycol ,mineral oil,lubrcation,emulsion,hydrocarbons etc. can not be used for conveying phosphate ester groups.
WORKING TEMPERATTUER: From -40℃ up to +120℃,the conveying medium temperature can be 0℃ to 70℃ if it is water.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Series	Nominal Diameter	Size	I.D.		W.D		O.D.	W.P	B.P	Min.B.R	W.T
R19	mm	inch	min	max	min	max	max	Mpa	Mpa	mm	Kg/m
R19-04-06	6.3	3/16“	4.6	5.4	10.3	11.9	12.7	28.0	56.0	45.0	0.17
R19-05-08	8	1/4"	6.2	7	11.1	12.1	14.4	28.0	56.0	50.0	0.21
R19-06-10	10	5/16"	7.7	8.5	12.7	13.7	16.3	28.0	56.0	55.0	0.255
R19-08-12.5	12.5	3/8”	9.3	10.1	14.6	15.6	18	28.0	56.0	65.0	0.47
R19-10-16	16	1/2“	12.3	13.5	18	19	22.6	28.0	56.0	90.0	0.59
R19-12-19	19	5/8''	15.5	16.7	20.9	21.9	27.5	28.0	56.0	100.0	0.75
R19-16-25	25	3/4''	18.6	19.8	24.9	25.9	32.5	28.0	56.0	120.0	1.45

NOTE: Other parameters are by your requirements.
