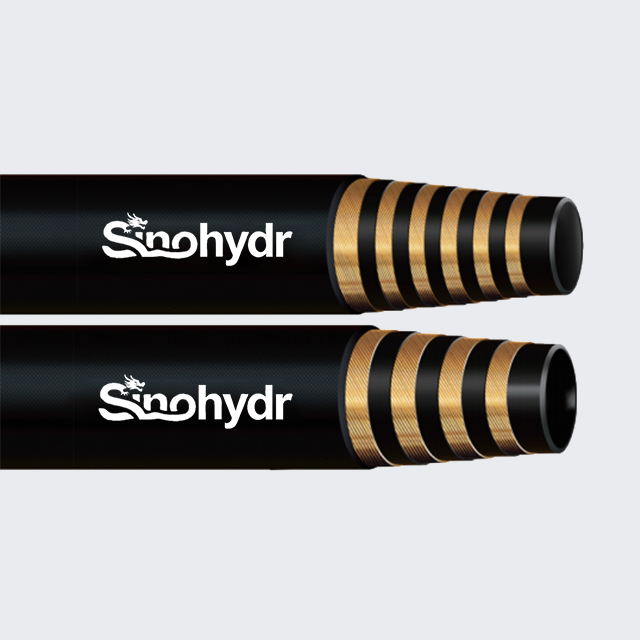

Our SAE 100R13 multilayer steel wire spiral hydraulic hose is engineered to deliver reliable performance in demanding industrial hydraulic systems. Constructed with premium oil-resistant synthetic rubber inner tube, 4 or 6 layers of high-tensile steel wire spiral reinforcement, and a durable oil- and weather-resistant rubber cover, this heavy-duty hydraulic hose provides exceptional strength and longevity in continuous operation. Designed to meet the rigorous SAE 100R13 industry standard, our spiral wire hydraulic hose is ideal for conveying a wide range of hydraulic fluids at working pressures up to 35 MPa. With a temperature range from -40℃ to +120℃ for most fluids and 0℃ to 70℃ for water, this industrial hydraulic hose offers versatile performance across diverse operating environments. We also provide custom solutions to meet your specific application requirements beyond our standard specifications.
The 4-6 layer steel wire spiral reinforcement delivers exceptional burst resistance up to 140 MPa, ensuring reliable performance even under extreme pressure fluctuations. This robust construction minimizes the risk of hose failure and reduces downtime in critical operations.
Our SAE 100R13 hydraulic hose is compatible with glycol, mineral oil, lubricants, emulsions, and hydrocarbons, making it suitable for most standard hydraulic systems. The synthetic rubber inner tube provides excellent resistance to oil degradation and chemical attack.
The outer rubber cover offers superior protection against oil, weather, ozone, and abrasion, extending the service life of the multilayer hydraulic hose in both indoor and outdoor applications. This durability reduces replacement frequency and lowers overall maintenance costs.
Despite its high-pressure rating, the steel wire spiral hydraulic hose maintains excellent flexibility with minimum bend radii ranging from 240 mm to 640 mm. This flexibility simplifies installation in tight spaces and reduces stress on hose connections.
Product Series | Nominal Diameter | Size | ID | W.D | OD | W.P | B.P | Min.B.R | W.T | |||
R13 | mm | inch | min | max | min | max | min | max | Mpa | Mpa | mm | Kg/m |
R13-12-19 | 19 | 3/4“ | 18.6 | 19.8 | 28.2 | 29.2 | 31 | 33.2 | 35.0 | 140.0 | 240.0 | 1.36 |
R13-16-25 | 25 | 1" | 25 | 26.4 | 34.9 | 36.4 | 37.6 | 39.8 | 35.0 | 140.0 | 300.0 | 2.12 |
R13-20-31.5 | 32 | 1-1/4" | 314 | 33.0 | 45.6 | 48.0 | 48.3 | 51.3 | 35.0 | 140.0 | 420.0 | 3.75 |
R13-24-38 | 38 | 1-1/2” | 37.7 | 39.3 | 53.1 | 55.5 | 55.8 | 58.8 | 35.0 | 140.0 | 500.0 | 5.49 |
R13-32-51 | 51 | 2“ | 50.4 | 52.0 | 66.9 | 69.3 | 69.3 | 72.7 | 35.0 | 140.0 | 640.0 | 7.13 |
Note: Custom specifications are available upon request.
Our SAE 100R13 multilayer steel wire spiral hydraulic hose is widely used in various industrial sectors where reliable high-pressure fluid transfer is essential. It is commonly employed in construction machinery, agricultural equipment, mining operations, material handling systems, and manufacturing plants. This high-pressure hydraulic hose is particularly suitable for hydraulic power transmission systems, hydraulic lifting equipment, and industrial machinery that operates at pressures up to 35 MPa. It is important to note that this hose is not suitable for conveying phosphate ester-based fluids.
The SAE 100R13 hydraulic hose can operate at temperatures from -40℃ to +120℃ when conveying most hydraulic fluids. When conveying water, the temperature range is limited to 0℃ to 70℃.
No, our multilayer steel wire spiral hydraulic hose is not compatible with phosphate ester-based fluids. Using it with these fluids can cause premature degradation and hose failure.
Yes, we provide custom cut-to-length hoses and can assemble them with a wide range of hydraulic fittings to meet your specific requirements.
All standard sizes of our SAE 100R13 hydraulic hose have a burst pressure rating of 140 MPa, which is 4 times the working pressure of 35 MPa.
